Quick Details

  • Standard: ASTM, ASTM A513-2007
  • Grade: 10#-45#, A53-A369, 10#, 20#, 45#, A53(A,B)
  • Thickness: 1 - 35 mm
  • Section Shape: Round
  • Outer Diameter: 30 - 650 mm
  • Place of Origin: Zhejiang, China (Mainland)
  • Secondary Or Not: Non-secondary
  • Application: Hydraulic Cylinders
  • Technique: Cold Drawn, Cold Drawn and Honing
  • Certification: ISO9001
  • Surface Treatment: Bright
  • Special Pipe: Hydraulic Cylinder
  • Alloy Or Not: Non-alloy
  • Product name: Welded Precision Cold Drawn Honed Tubing of Hydraulic Cylinder
  • Material: EN10305-2
  • Shape: Round
  • Keyword: Honed Tubing
  • Surface: Ra max0.4μm
  • Length: 1-12m
  • Packing: Max 1.5tons per bundle
  • Usage: Hydraulic Cylinders
  • Certificate: EN10204 3.1B EN10204 3.2B

Packaging & Delivery

Packaging Details: Welded Precision Cold Drawn Honed Tubing of Hydraulic Cylinder withantirust protection, In hexagon bundles, or in wooden box!
Delivery Detail: 45-50 day
Product Description


EN10305-2 DOM Hydraulic Cylinder Tube for Oil and Pnuematic Cylinders E155 E195 E235 E275 E355

EN10305-2 Welded Precision Cold Drawn Steel Tubes
Honing, Skiving, Roller Burnish

Applications:
for Auto industry
for machinery use
Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders


Size range: ID.: 20-450mm W.T.:1-80mm L:max12000mm

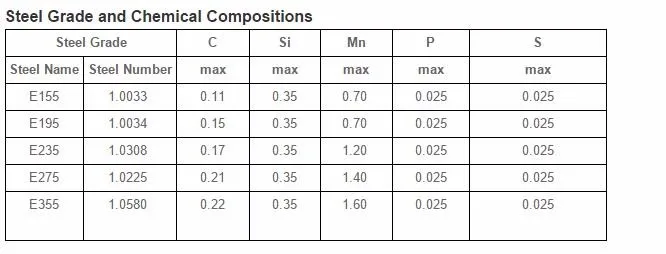

Steel Grade: E155, E195, E235, E275, E355. S45C

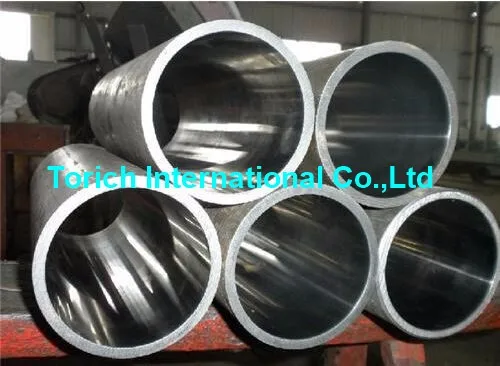

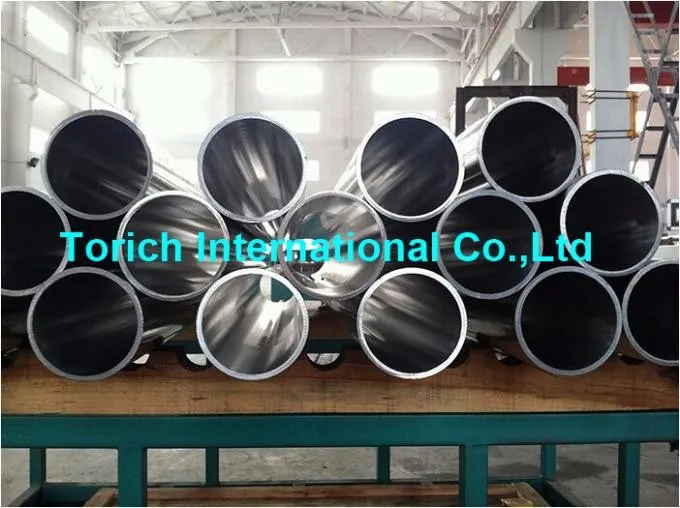

Products Show
Tubes Maching

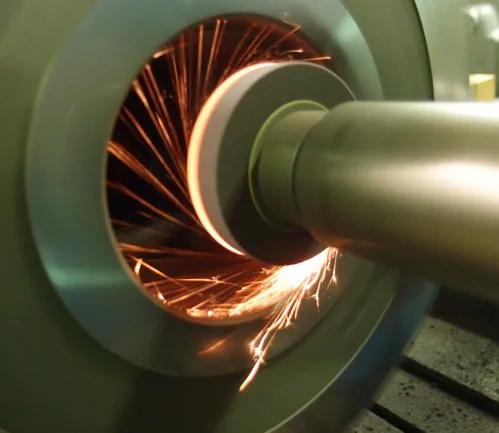

ID Honing


Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :

1.Smooth surface finishes inside bores

2.Hold precise tolerances on bore diameters


ID H7 H8 H9

ID roughness 0.2-0.8μm

ID max 630mm

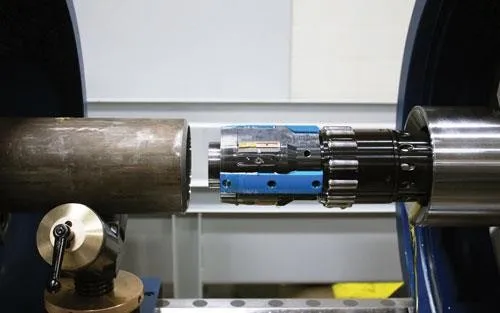

Roller Burnish+ Skiving

Two thin chips are cut at high feed rate while the tool passes through the workpiece.producing super finish surface,with a bore precise tolerance  .


ID H7 H8 H9
ID roughness 0.2-0.8μm

ID max 630mm

Our Service

High quality

Standard:ISO9001-2008
Number:02112Q119491R2M
Issue Date:2012-12-12
Expiry Date:2015-12-11
Scope/Range:Manufacture and After-Sales Service of Seamless Steel Tube
Issued By:IAF

High quality

Standard:ISO14001-2008
Number:02112E10591R2M
Issue Date:2012-12-12
Expiry Date:2015-12-11
Scope/Range:Manufacture and Related Management Activities of Seamless Steel Tube
Issued By:IAF

High quality

Standard:TS16949
Number:0200393
Issue Date:2015-01-07
Expiry Date:2018-01-06
Scope/Range:Cold Drawn Seamless Steel Tubes
Issued By:IATF

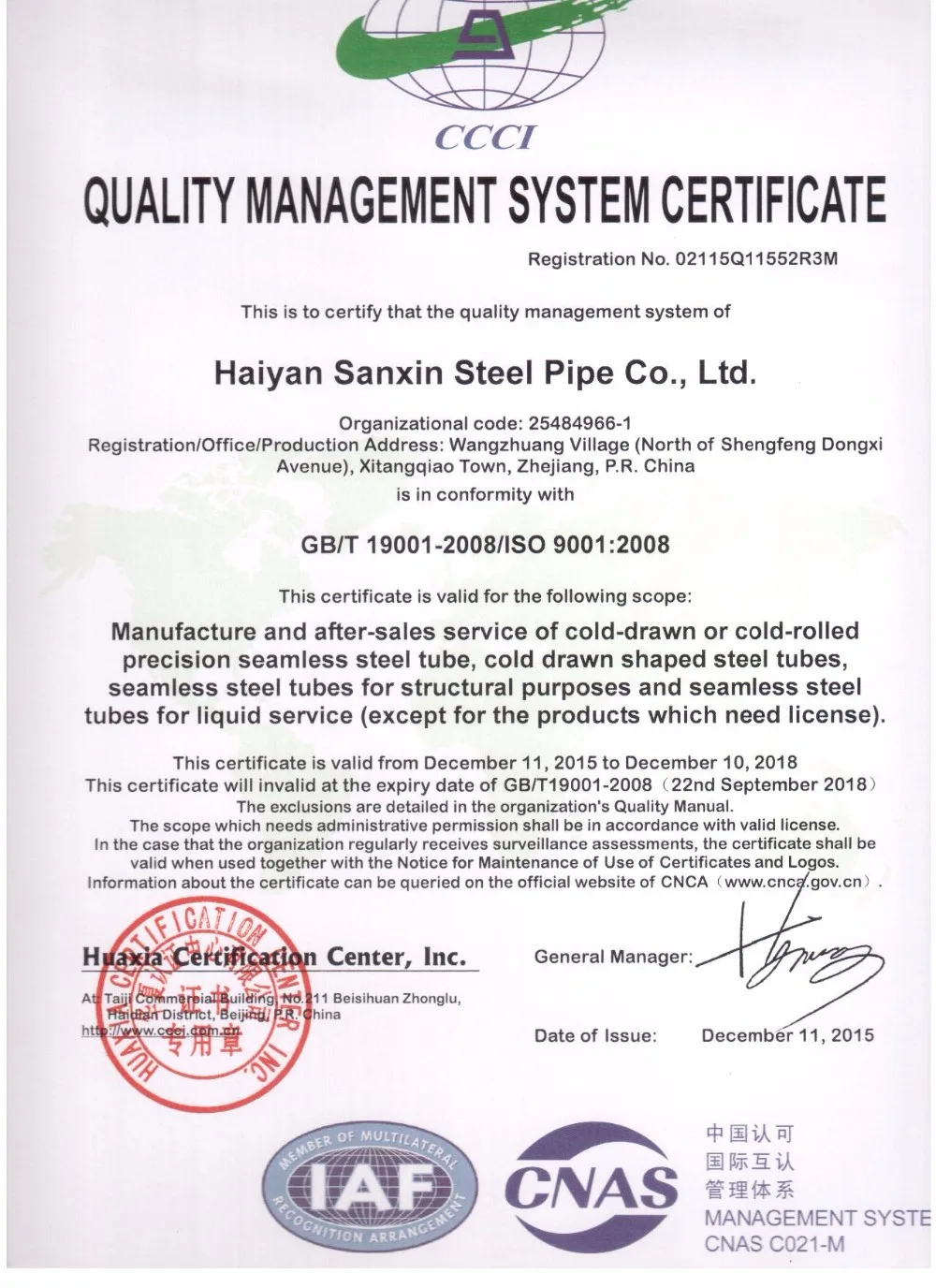

Our Certifications

ISO9001

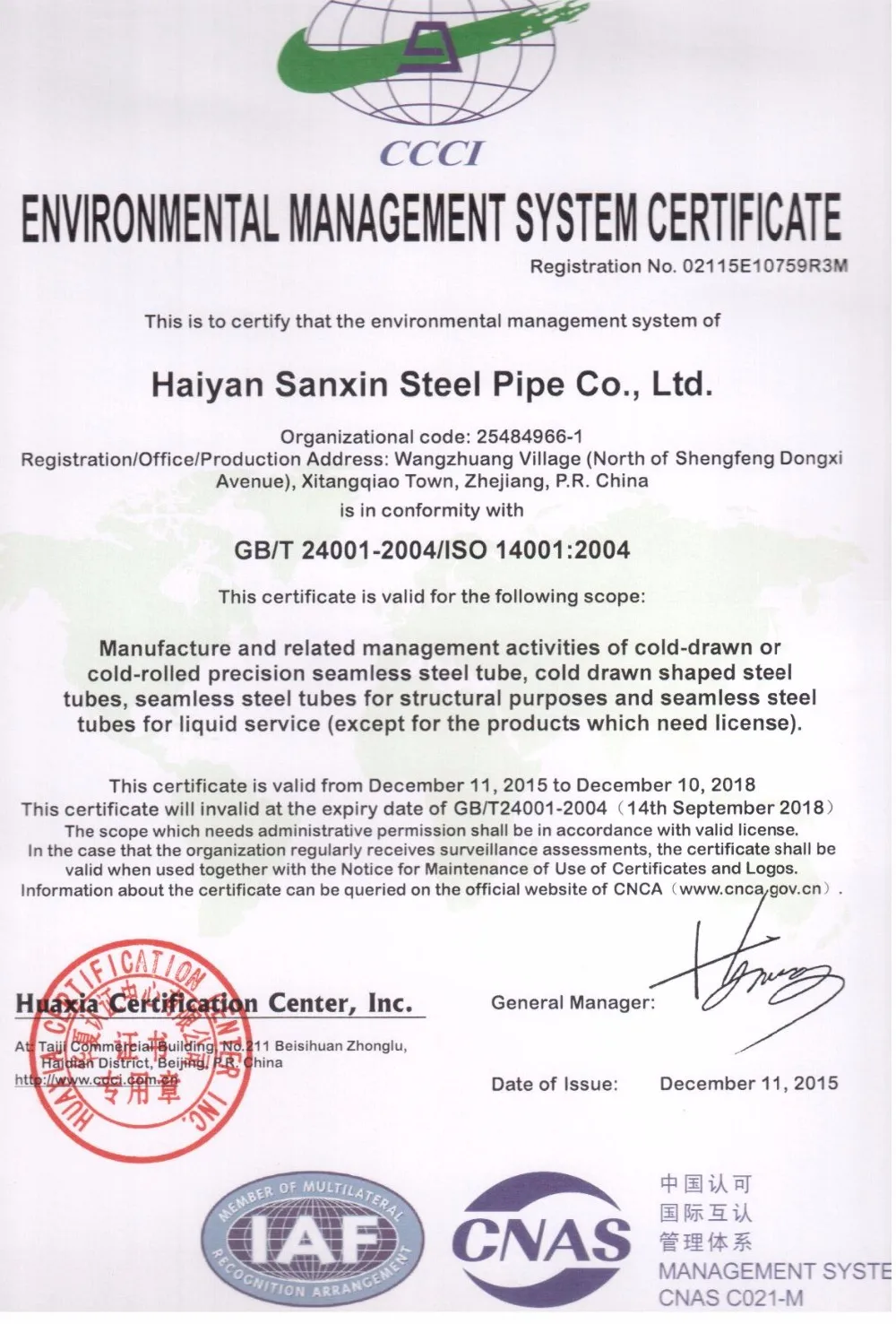

ISO14001

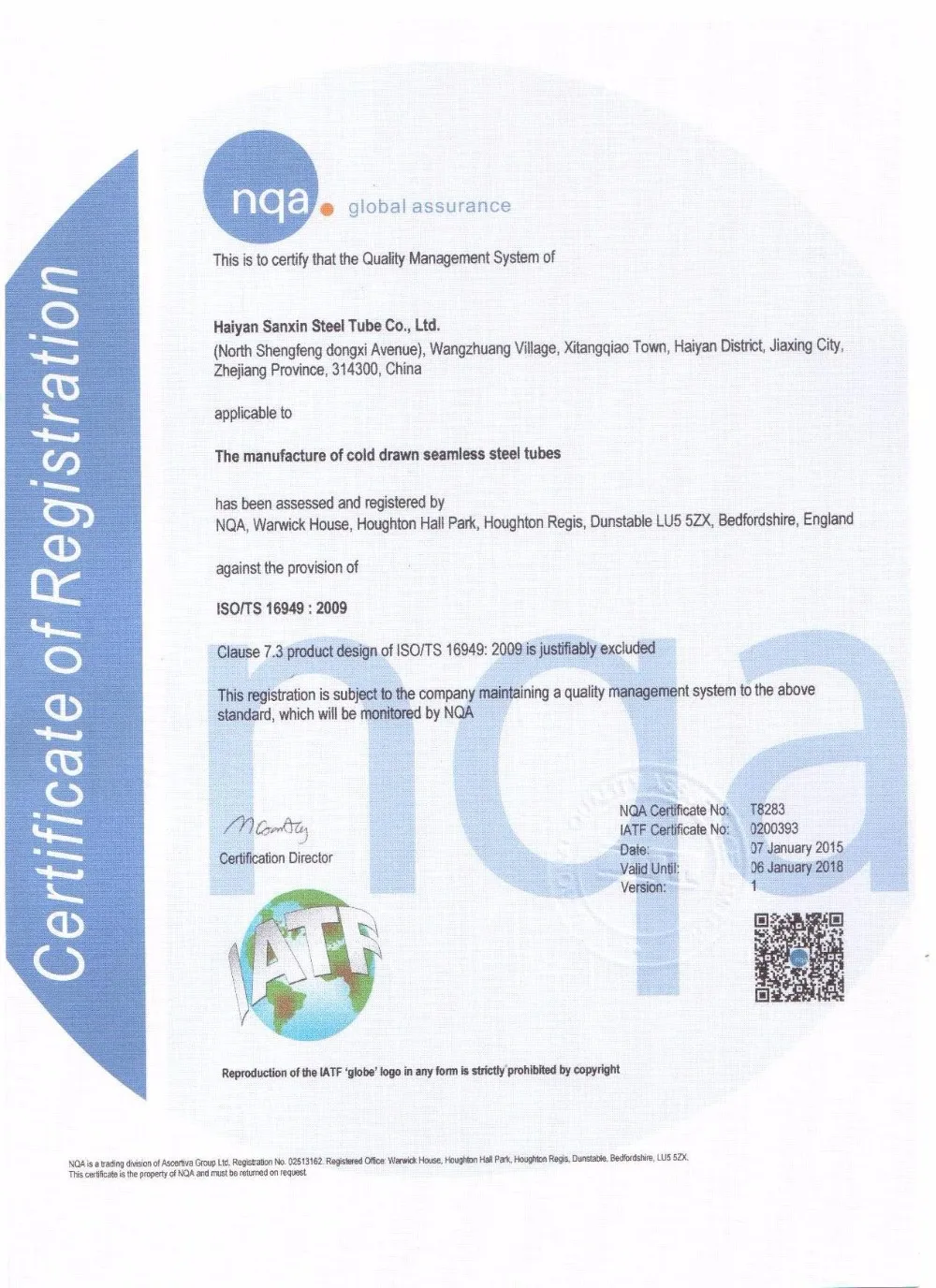

TS16949


QUALITY CONTROL

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

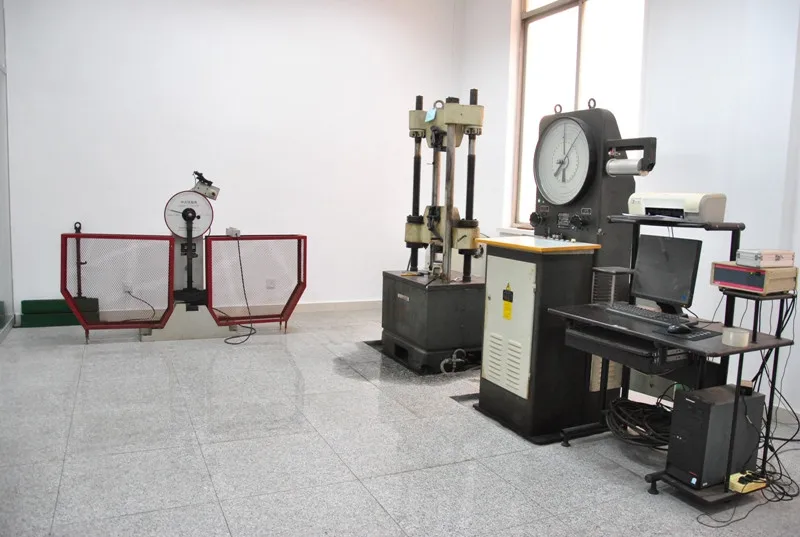

Impact Testing

Tensile Strength Testing

Chemical Composition Testing

Our Company

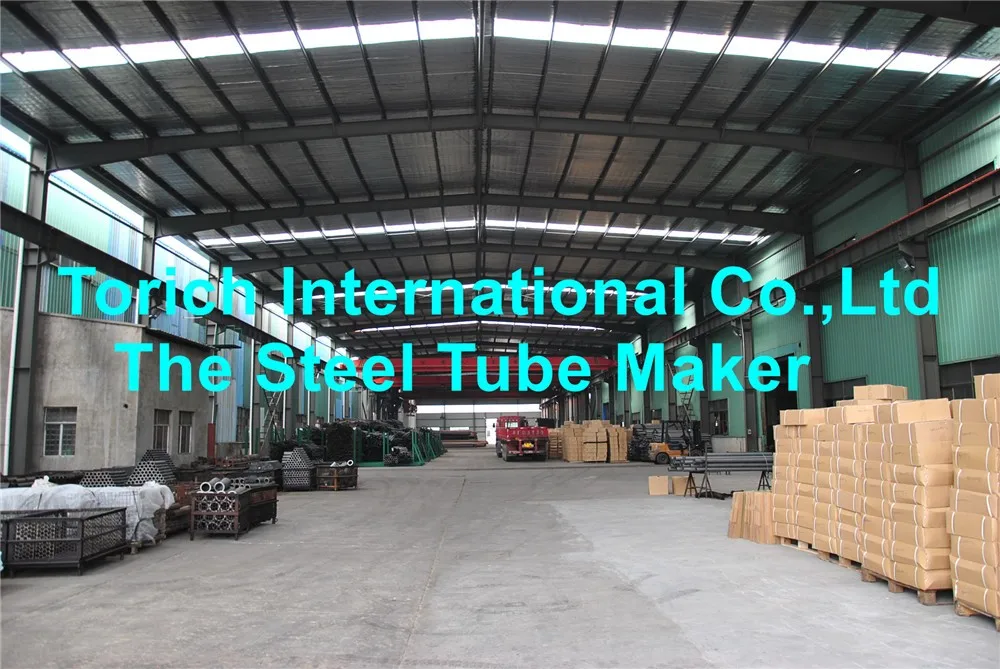

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

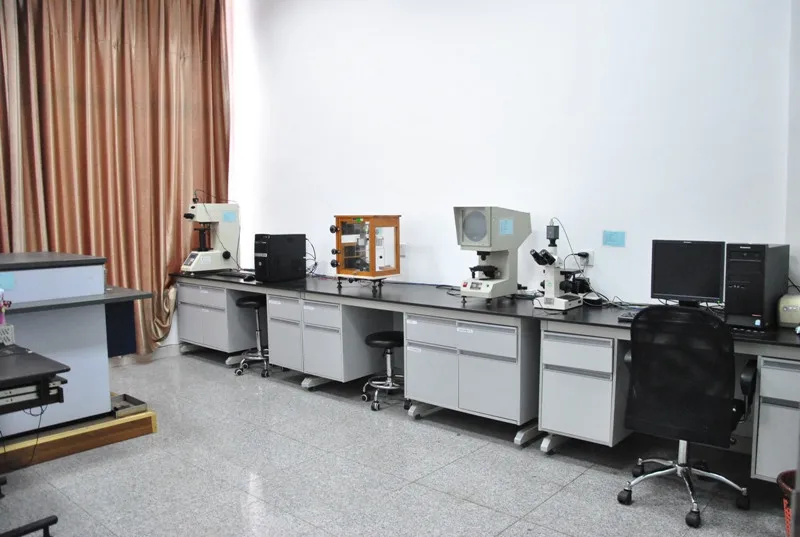

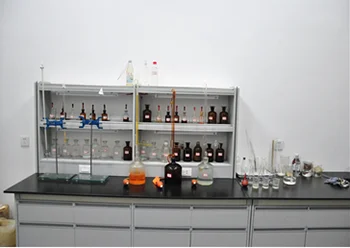

Lab

Our Lab


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Packing & Delivery

Packing Details  : In bundles or in wooden boxes packaging

Delivery Details : 30-60days

In hexagonal bundles packaging with woven

In hexagonal shaps,the tubes will be well fixed,so it can avoid the damages when delievey .

In wooden boxes.

Solid packaging ,protecting tubes from damages much better.

In poywooden packaging,It cut the packaging costs also it can protect tubes well
In bundles with end caps.well protect tubes from rust.
Carton Packing suit for the cutting length
